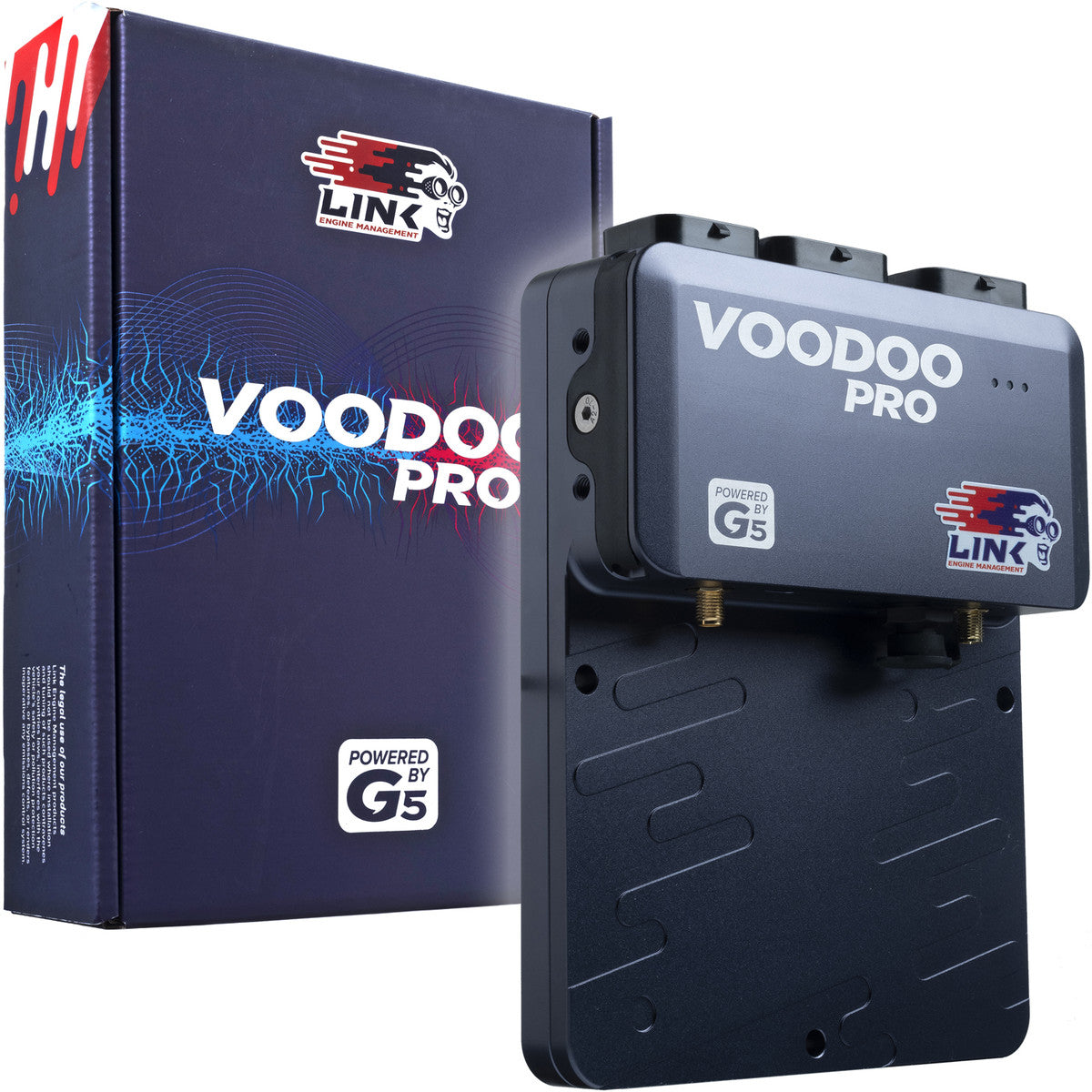

LINK Voodoo Pro

the G5 Voodoo Pro can run staged port injection and direct injection (DI) and has 24 drives which can also be used as auxiliary outputs, providing flexibility for various setups.

The built-in WiFi allows for easy access to the ECU without physically connecting to the vehicle, and multiple G5 Voodoo Pro ECUs can be set up on the same Wi-Fi network. Dual onboard Digital Wideband Lambda controllers provide accurate tuning for each bank of a V configuration engine.

Built-in WiFi, with real-time PC Link connection

Built-in Global Positioning System (GPS) up to 50Hz

Dual onboard Digital Wideband Lambda controllers

Dual onboard E-throttle (Drive by Wire)

12 Injection, 8 Ignition and 4 multi-purpose (inj, ign, aux) drives (24 total)

Dual microcontrollers

Direct Injection (DI) on up to 12 injection drives (using an external OEM or aftermarket driver box)

Link CAN Files - Create your own separate CAN files with additional streams and channels, which can be saved, locked and shared

Runs on the same highly acclaimed PC Link software as G4X, meaning you don’t need to learn a new software package. You can open both G4X and G5 log and map files in the same software (G4X Map can also be loaded into a G5 Voodoo Pro)

Flexible mounting options - Fix to a face using the three top-down through-holes with M5 or 3/16 socket screws, or hang the ECU from a dash bar or similar using custom brackets and the four M5 side mounting points.

Requires “A”, “B” & “E” connector kits (not supplied).
