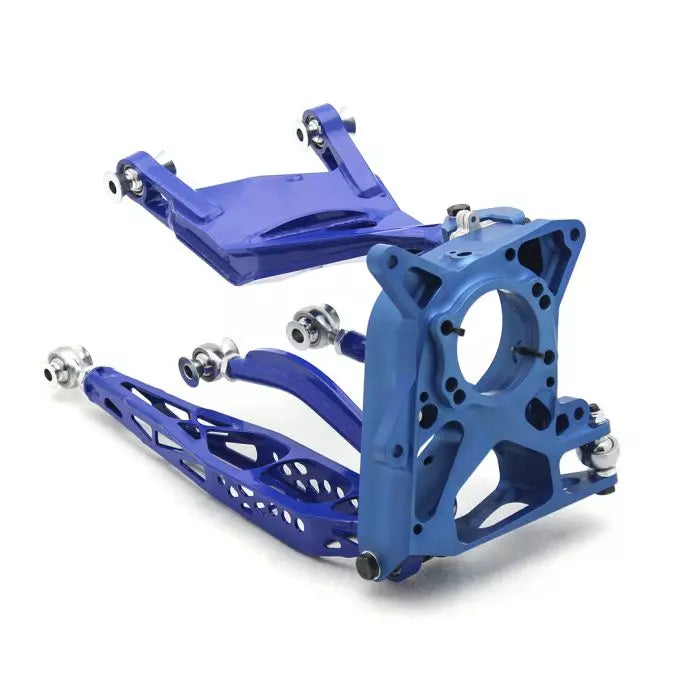

Toyota GT86 Rear Suspension Drop Knuckle Kit

• -7 kg of combined weight saving over original components
  But still maintaining required strength and stiffness

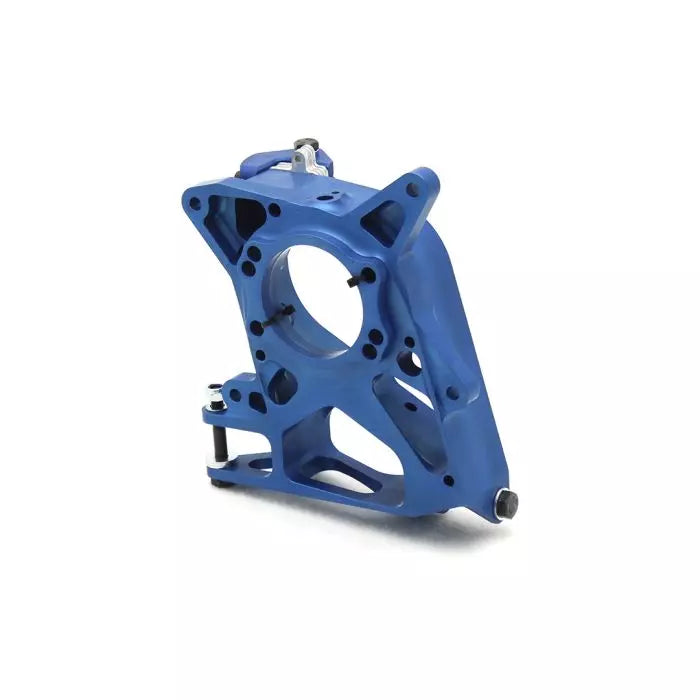

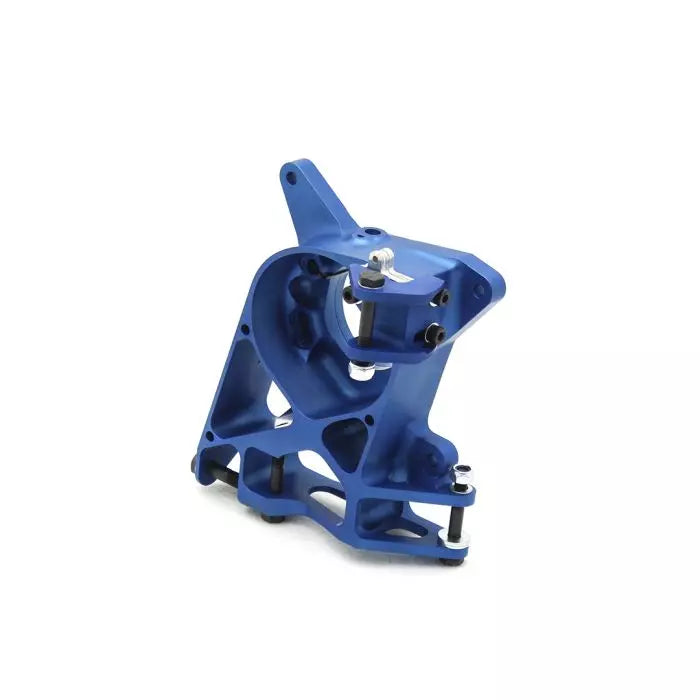

• 7075-T6 aluminium billet CNC knuckles
  With optimized double shear design that provides low weight and high strenght

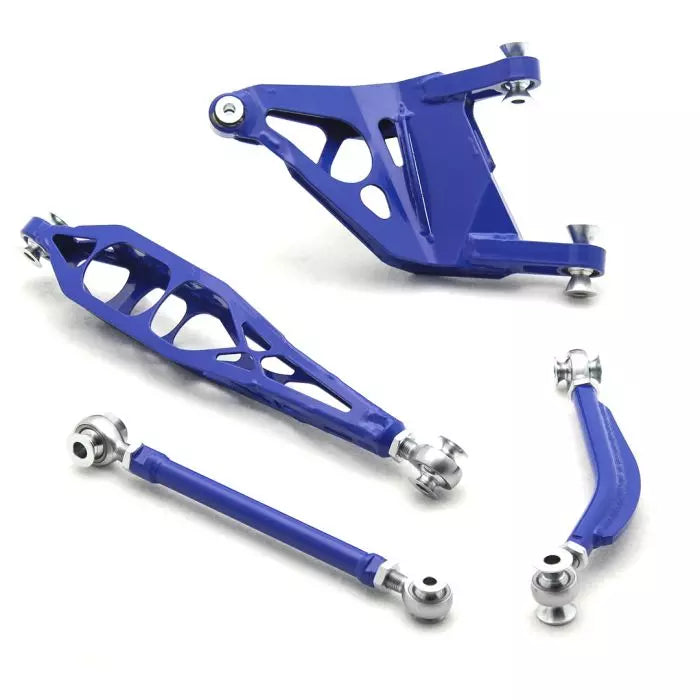

• All the rear links and arms are made of high strength steel
  CrMo rod ends and sphericals used instead of rubber bushings
• Adjustable shock motion ratio
  Shock motion ratio can be adjusted by changing the shocks position on the arm. It can be done quickly and has the effect of changing the springrate. This means that understeer or oversteer can be removed within a few minutes
• Easy camber adjustment
  Camber shims are used for adjustment
• Bump steer adjustment
  Possibility to adjust bumpsteer by changing washer locations

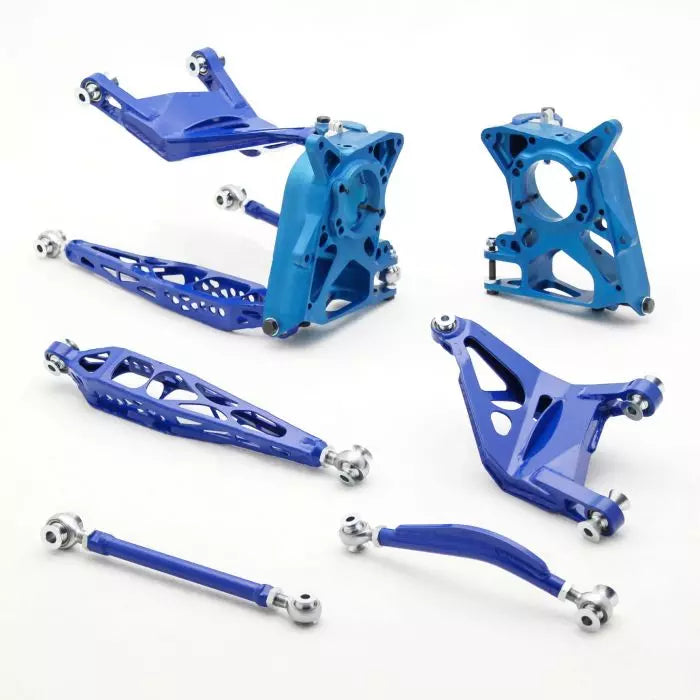

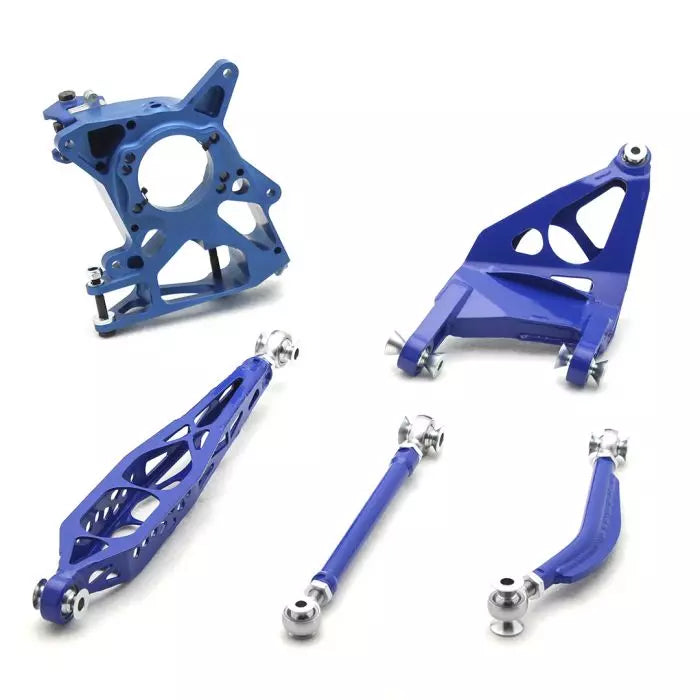

Kit includes:

• Pre-set suspension arms
• Knuckles with hardware
• Camber adjustment shims
• Installation guide

Other information:

• Track is the same as original, as this is defined by halfshaft lengths
• This kit assumes coilovers
• Original wheel speed sensor can be used
• Possibility to use Nissan S-Chassis hub with bigger CV joint
• Minimum rim size is 17“
