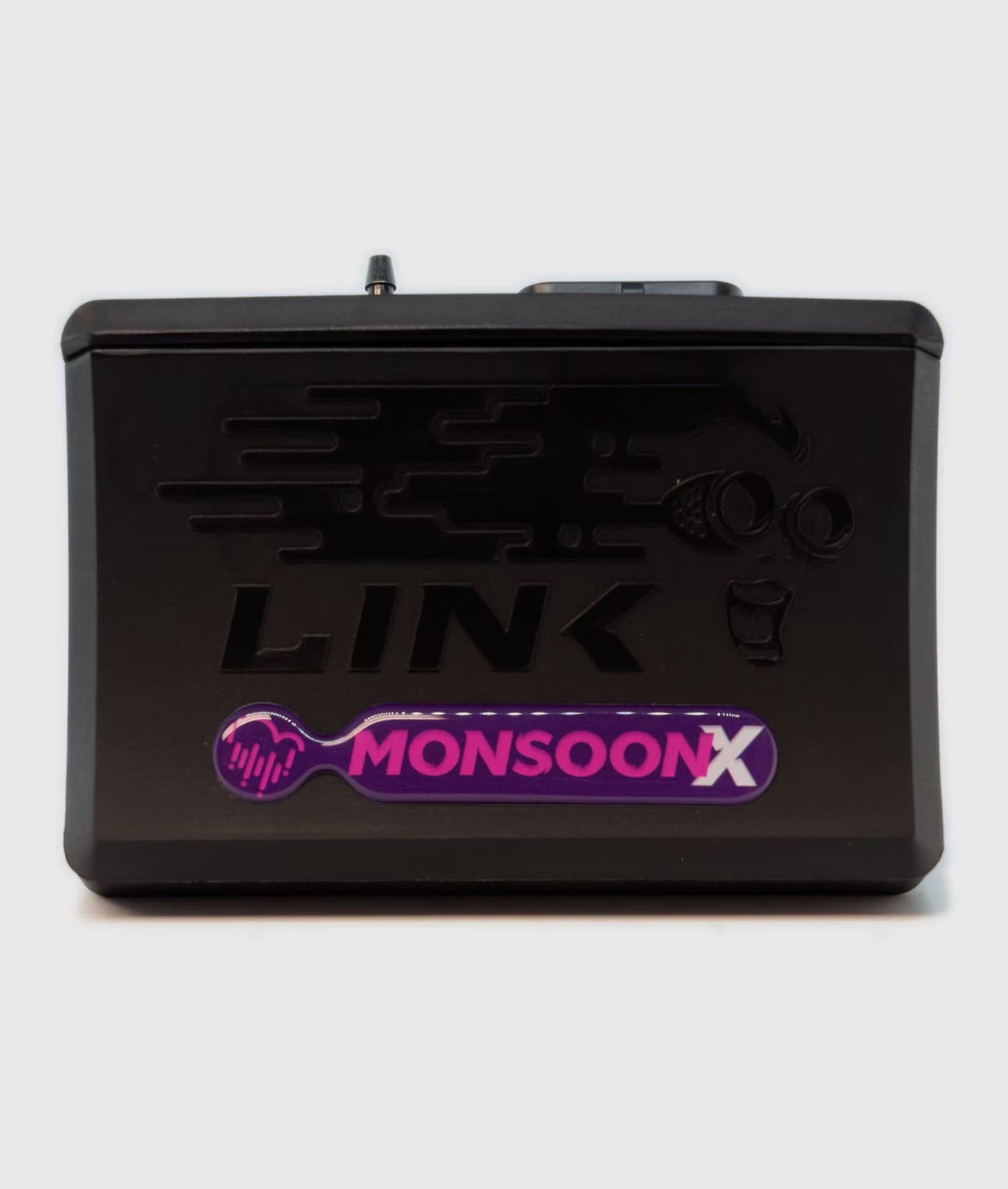

G4X MonsoonX ECU

Bridging the gap between the entry and mid-level ECUs, the MonsoonX delivers advanced tuning and motorsport features in a compact and capable package. Sharing the same G4X architecture as the rest of the G4X range, the MonsoonX delivers the same proven tuning experience and reliability trusted by enthusiasts and professional tuners worldwide.

The MonsoonX shares the same processor, firmware, software and standard G4X feature set found throughout the G4X range. Features include CAN Bus, Flex Fuel, Flexible Engine Protection Limiters, CAN Keypad Control, Open and Closed Loop Boost Control, Dual Closed Loop Lambda, VVT Control, a built-in Trigger Oscilloscope, compatibility with aftermarket displays, and 512MB of onboard data logging.

It also features a built-in MAP sensor. Building on the capability of the AtomX, the MonsoonX adds additional Auxiliary Outputs, Digital Inputs and Analogue Inputs along with advanced tuning and motorsport functionality. Depending on your I/O requirements, features such as Launch Control, Anti-Lag, Gear Shift Control, Paddle Shift Control and VVT Control allow the ECU to be configured to suit the specific requirements of your build.

The MonsoonX is the ideal solution for naturally aspirated and turbocharged engines that require some advanced tuning and motorsport features, without needing to step up to one of Link's higher-level ECUs. Note: The MonsoonX will run any of the above features, but it cannot run them all at once. The number of features you can run is dependent on how many of the limited Inputs and Outputs each feature needs.

Models SupportedThe MonsoonX can control up to 2 rotors or 4 cylinders with sequential injection and direct spark.
